DOP(材料PA66HS)圆盘/方盘型+杉树头的一体式固定扎带参数表 |
||||||||||
品名 |
图片 |
宽度W |
长度L |
厚度H |
MAX捆绑直径 |
min捆绑直径 |
通用板厚 |
安装孔径 |
拉力N | 产品编码 |

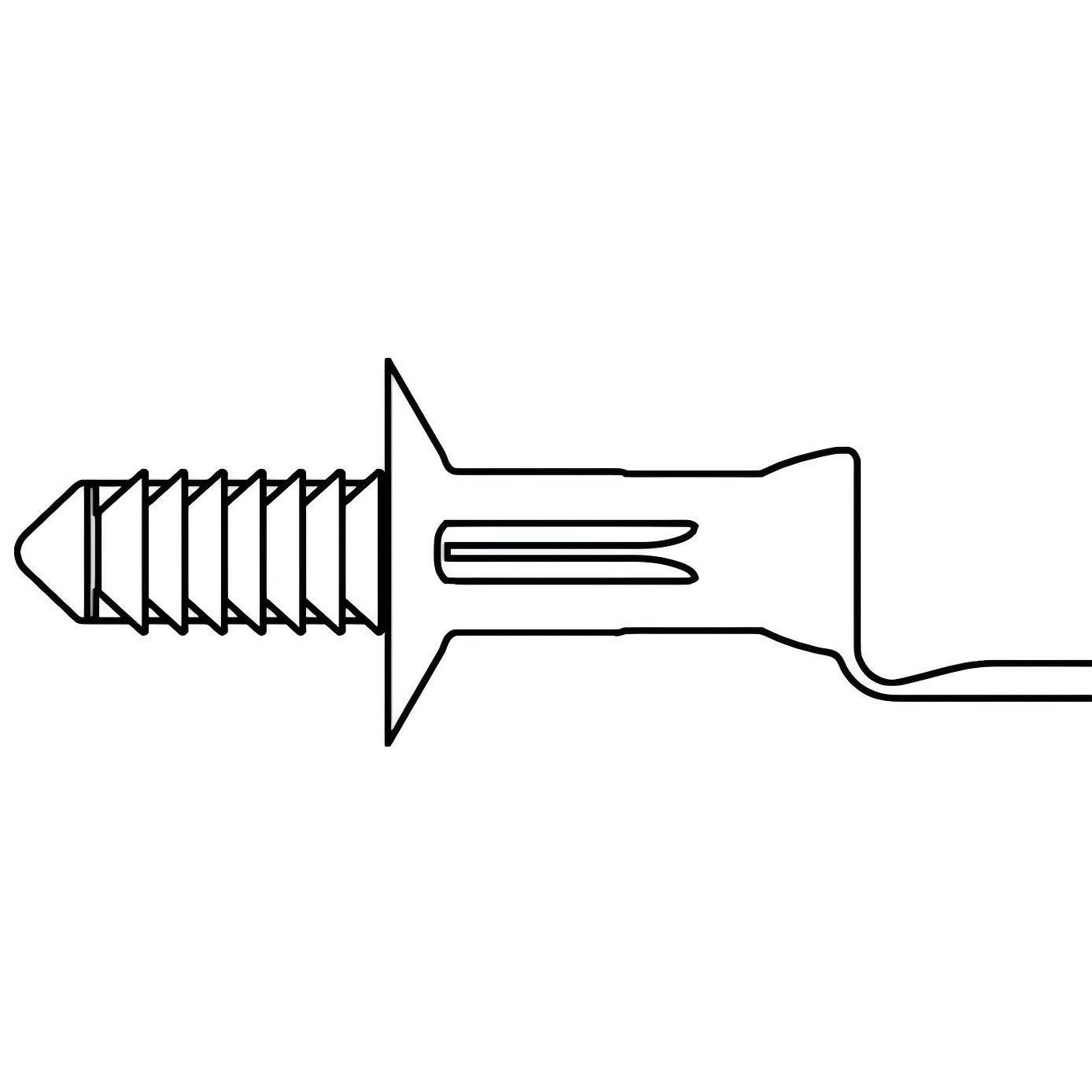

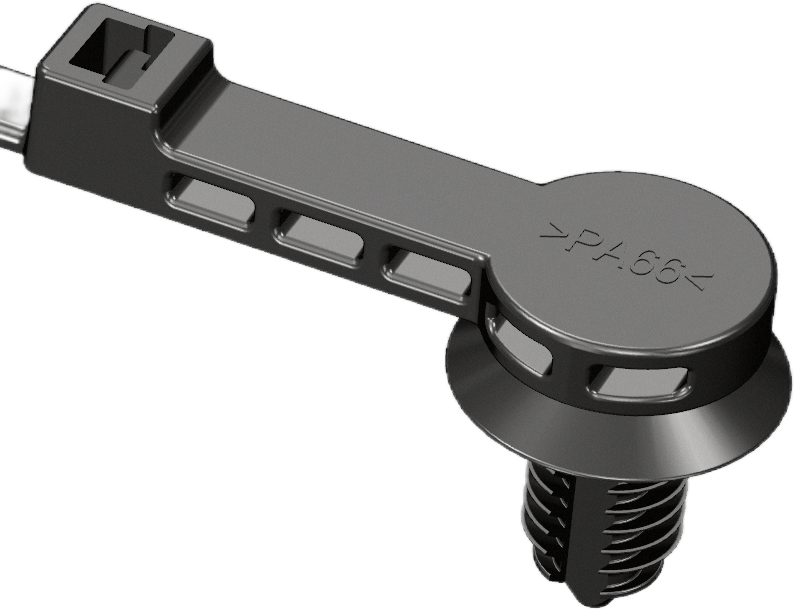

| DOP-T30SL-L180PA66HS |  圆盘型+杉树头  圆盘型+杉树头  方盘型+杉树头  方盘型+杉树头 |
3.5 | 180 | 1.2 | 40 | 1.5 | 0.6-5.0 | 6.3-6.8 | 135 | 13957-23009-001 |
| DOP-T30SL-L200PA66HS | 3.5 | 200 | 1.2 | 50 | 1.5 | 0.6-5.0 | 6.3-6.8 | 135 | 13957-23009-002 | |
| DOP-T40SL-L180PA66HS | 4.0 | 180 | 1.2 | 35 | 1.5 | 0.6-5.0 | 6.3-6.8 | 180 | 13957-23009-003 | |
| DOP-T40SL-L200PA66HS | 4.0 | 200 | 1.2 | 50 | 1.5 | 0.6-5.0 | 6.3-6.8 | 180 | 13957-23009-004 | |
| DOP-T50SL-L180PA66HS | 4.8 | 180 | 1.28 | 40 | 1.5 | 0.6-5.0 | 6.3-6.8 | 225 | 13957-23009-005 | |
| DOP-T50SL-L190PA66HS | 4.8 | 190 | 1.28 | 40 | 1.5 | 0.6-5.0 | 6.3-6.8 | 225 | 13957-23009-006 | |
| DOP-T50SL-L200PA66HS | 4.8 | 200 | 1.28 | 50 | 1.5 | 0.6-5.0 | 6.3-6.8 | 225 | 13957-23009-007 | |
| DOP-T50SL-L210PA66HS | 4.8 | 210 |
1.28 | 50 | 1.5 | 0.6-5.0 | 6.3-6.8 | 225 | 13957-23009-008 | |
| DOP-T50SL-L230PA66HS | 4.8 | 230 | 1.28 | 50 | 1.5 | 0.6-5.0 | 6.3-6.8 | 225 | 13957-23009-009 | |
| DOP-T80SL-L180PA66HS | 5.5 | 180 | 1.3 | 40 | 1.5 | 0.6-5.0 | 6.3-6.8 | 355 | 13957-23009-010 | |
| DOP-T80SL-L190PA66HS | 5.5 | 190 | 1.3 | 40 | 1.5 | 0.6-5.0 | 6.3-6.8 | 355 | 13957-23009-011 | |
| DOP-T80SL-L200PA66HS | 5.5 | 200 | 1.3 | 50 | 1.5 | 0.6-5.0 | 6.3-6.8 | 355 | 13957-23009-012 | |
| DOP-T80SL-L210PA66HS | 5.5 | 210 | 1.3 | 50 | 2.5 | 0.6-5.0 | 6.3-6.8 | 355 | 13957-23009-013 | |
| DOP-T80SL-L230PA66HS | 5.5 | 230 | 1.3 | 55 | 3.5 | 0.6-5.0 | 6.3-6.8 | 355 | 13957-23009-014 | |
DOP(材料PA66HS)方盘/圆盘型+杉树头的一体式固定扎带参数表 | ||||||||||
品名 | 图片 | 宽度W | 长度L | 厚度H | MAX捆绑直径 | min捆绑直径 | 通用板厚 | 安装孔径 | 拉力N | 产品编码 |

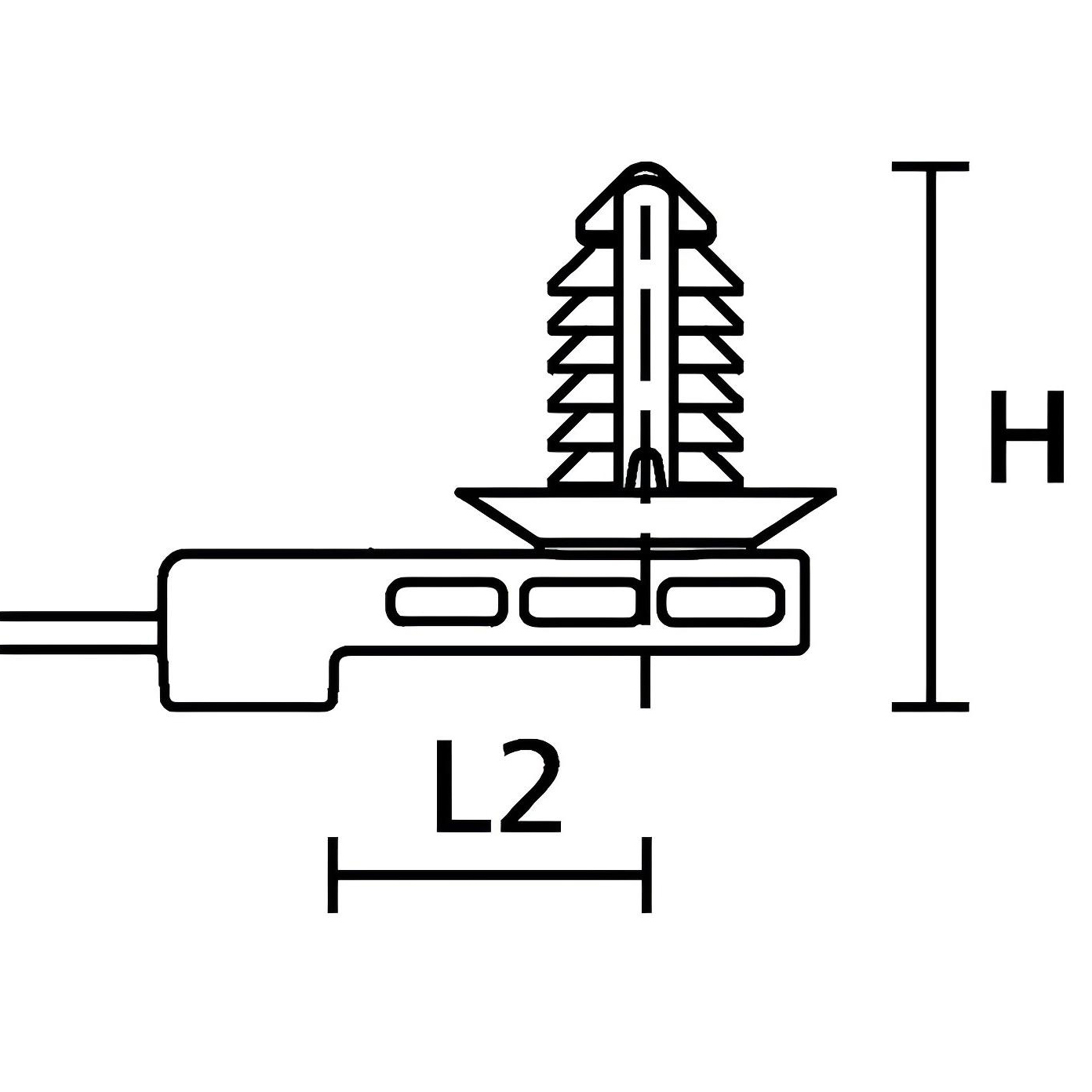

| DOP-T30-L180PA66HS |  方盘型+杉树头  圆盘型+杉树头 | 3.5 | 180 | 1.2 | 40 | 1.5 | 0.6-5.5 | 6.2-12.2 6.5-12.5 | 135 | 13957-23010-001 |
| DOP-T30-L200PA66HS | 3.5 | 200 | 1.2 | 50 | 1.5 | 0.6-5.5 | 135 | 13957-23010-002 | ||
| DOP-T40-L180PA66HS | 4.0 | 180 | 1.2 | 35 | 1.5 | 0.6-5.5 | 180 | 13957-23010-003 | ||
| DOP-T40-L200PA66HS | 4.0 | 200 | 1.2 | 50 | 1.5 | 0.6-5.5 | 180 | 13957-23010-004 | ||
| DOP-T50-L180PA66HS | 4.8 | 180 | 1.28 | 40 | 1.5 | 0.6-5.5 | 225 | 13957-23010-005 | ||
| DOP-T50-L190PA66HS | 4.8 | 190 | 1.28 | 40 | 1.5 | 0.6-5.5 | 225 | 13957-23010-006 | ||
| DOP-T50-L200PA66HS | 4.8 | 200 | 1.28 | 50 | 1.5 | 0.6-5.5 | 225 | 13957-23010-007 | ||
| DOP-T50-L210PA66HS | 4.8 | 210 | 1.28 | 50 | 1.5 | 0.6-5.5 | 225 | 13957-23010-008 | ||
| DOP-T50-L230PA66HS | 4.8 | 230 | 1.28 | 50 | 1.5 | 0.6-5.5 | 225 | 13957-23010-009 | ||
| DOP-T80-L180PA66HS | 5.5 | 180 | 1.3 | 40 | 1.5 | 0.6-5.5 | 355 | 13957-23010-010 | ||
| DOP-T80-L190PA66HS | 5.5 | 190 | 1.3 | 40 | 1.5 | 0.6-5.5 | 355 | 13957-23010-011 | ||
| DOP-T80-L200PA66HS | 5.5 | 200 | 1.3 | 50 | 1.5 | 0.6-5.5 | 355 | 13957-23010-012 | ||
| DOP-T80-L210PA66HS | 5.5 | 210 | 1.3 | 50 | 2.5 | 0.6-5.5 | 355 | 13957-23010-013 | ||
| DOP-T80-L230PA66HS | 5.5 | 230 | 1.3 | 55 | 3.5 | 0.6-5.5 | 355 | 13957-23010-014 | ||
DOP(材料PA66HS)圆盘型+杉树头的一体式固定扎带参数表 | ||||||||||
品名 | 图片 | 宽度W | 长度L | 厚度H | MAX捆绑直径 | min捆绑直径 | 通用板厚 | 安装孔径 | 拉力N | 产品编码 |

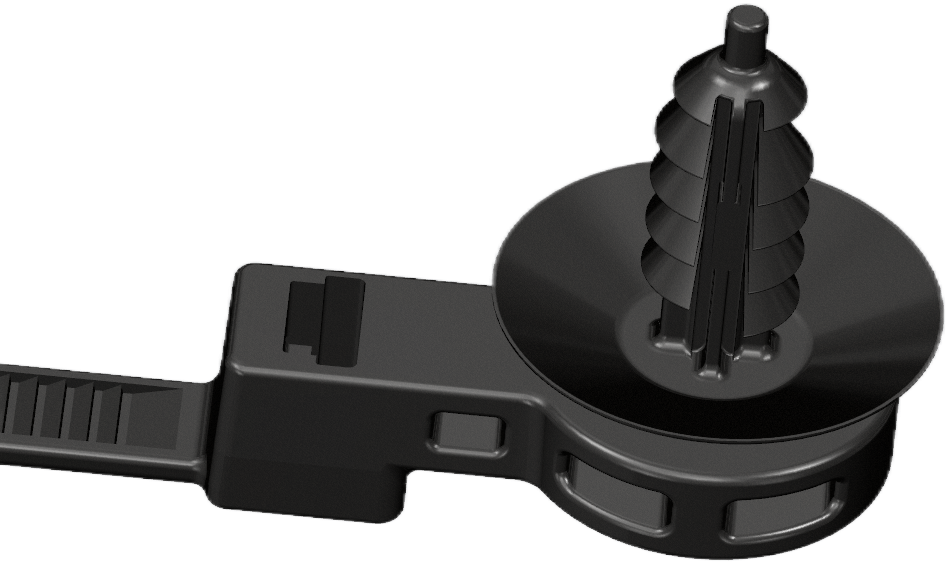

| DOP-T30-L180PA66HS |  圆盘型+杉树头  圆盘型+杉树头 | 3.5 | 180 | 1.2 | 40 | 1.5 | 0.8-3.0 | 4.2-4.6 | 135 | 13957-23013-001 |
| DOP-T30-L200PA66HS | 3.5 | 200 | 1.2 | 50 | 1.5 | 0.8-3.0 | 4.2-4.6 | 135 | 13957-23013-002 | |
| DOP-T40-L180PA66HS | 4.0 | 180 | 1.2 | 35 | 1.5 | 0.8-3.0 | 4.2-4.6 | 180 | 13957-23013-003 | |
| DOP-T40-L200PA66HS | 4.0 | 200 | 1.2 | 50 | 1.5 | 0.8-3.0 | 4.2-4.6 | 180 | 13957-23013-004 | |
| DOP-T50-L180PA66HS | 4.8 | 180 | 1.28 | 40 | 1.5 | 0.8-3.0 | 4.2-4.6 | 225 | 13957-23013-005 | |
| DOP-T50-L190PA66HS | 4.8 | 190 | 1.28 | 40 | 1.5 | 0.8-3.0 | 4.2-4.6 | 225 | 13957-23013-006 | |
| DOP-T50-L200PA66HS | 4.8 | 200 | 1.28 | 50 | 1.5 | 0.8-3.0 | 4.2-4.6 | 225 | 13957-23013-007 | |
| DOP-T50-L210PA66HS | 4.8 | 210 | 1.28 | 50 | 1.5 | 0.8-3.0 | 4.2-4.6 | 225 | 13957-23013-008 | |
| DOP-T50-L230PA66HS | 4.8 | 230 | 1.28 | 50 | 1.5 | 0.8-3.0 | 4.2-4.6 | 225 | 13957-23013-009 | |
| DOP-T80-L180PA66HS | 5.5 | 180 | 1.3 | 40 | 1.5 | 0.8-3.0 | 4.2-4.6 | 355 | 13957-23013-010 | |
| DOP-T80-L190PA66HS | 5.5 | 190 | 1.3 | 40 | 1.5 | 0.8-3.0 | 4.2-4.6 | 355 | 13957-23013-011 | |
| DOP-T80-L200PA66HS | 5.5 | 200 | 1.3 | 50 | 1.5 | 0.8-3.0 | 4.2-4.6 | 355 | 13957-23013-012 | |
| DOP-T80-L210PA66HS | 5.5 | 210 | 1.3 | 50 | 2.5 | 0.8-3.0 | 4.2-4.6 | 355 | 13957-23013-013 | |
| DOP-T80-L230PA66HS | 5.5 | 230 | 1.3 | 55 | 3.5 | 0.8-3.0 | 4.2-4.6 | 355 | 13957-23013-014 | |
