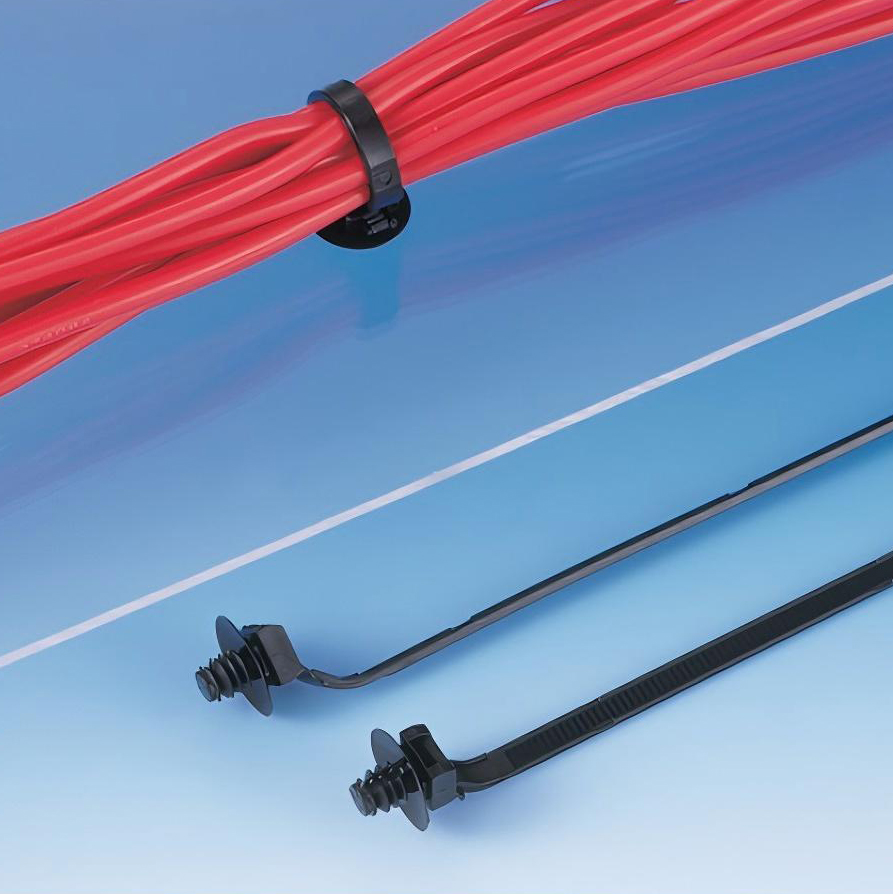

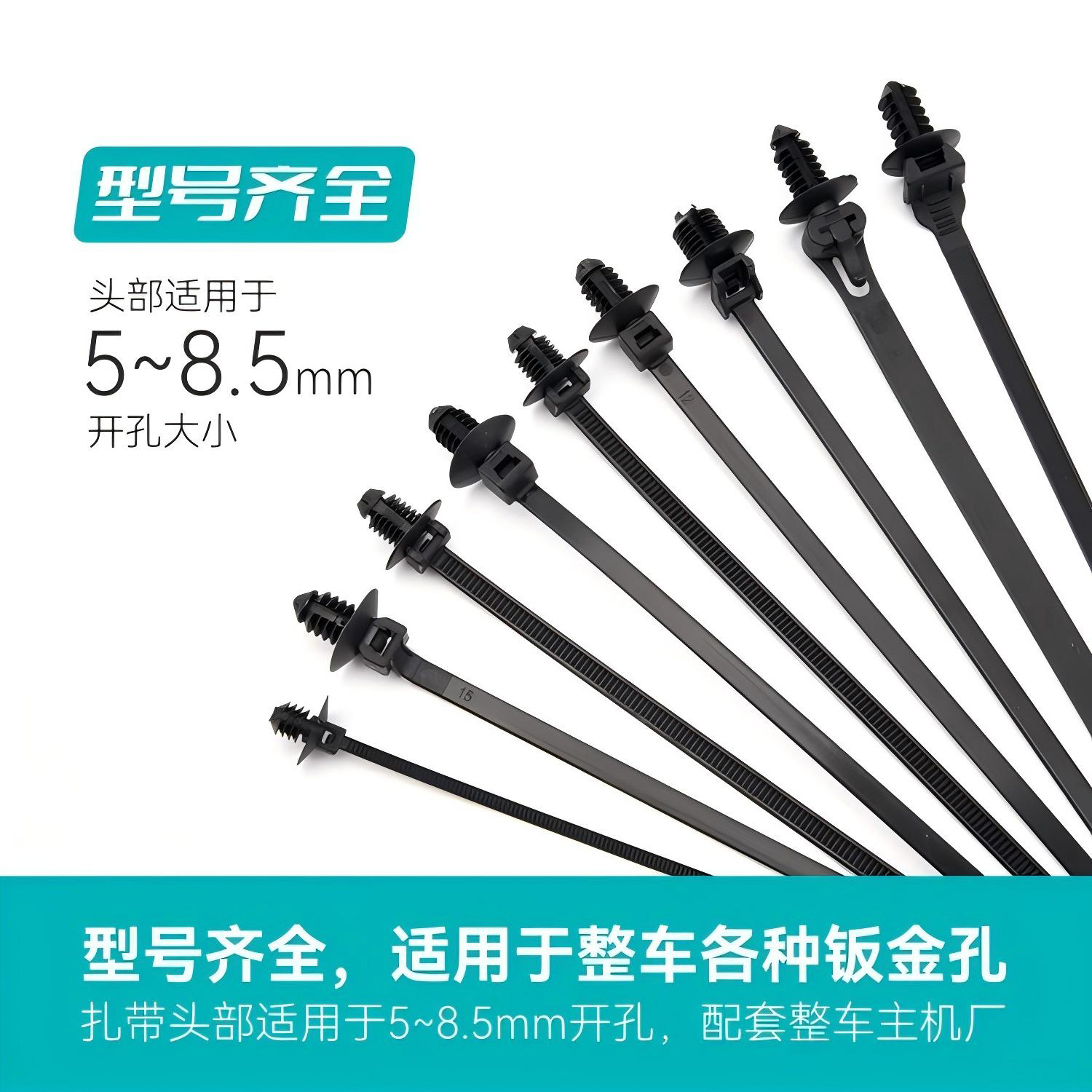

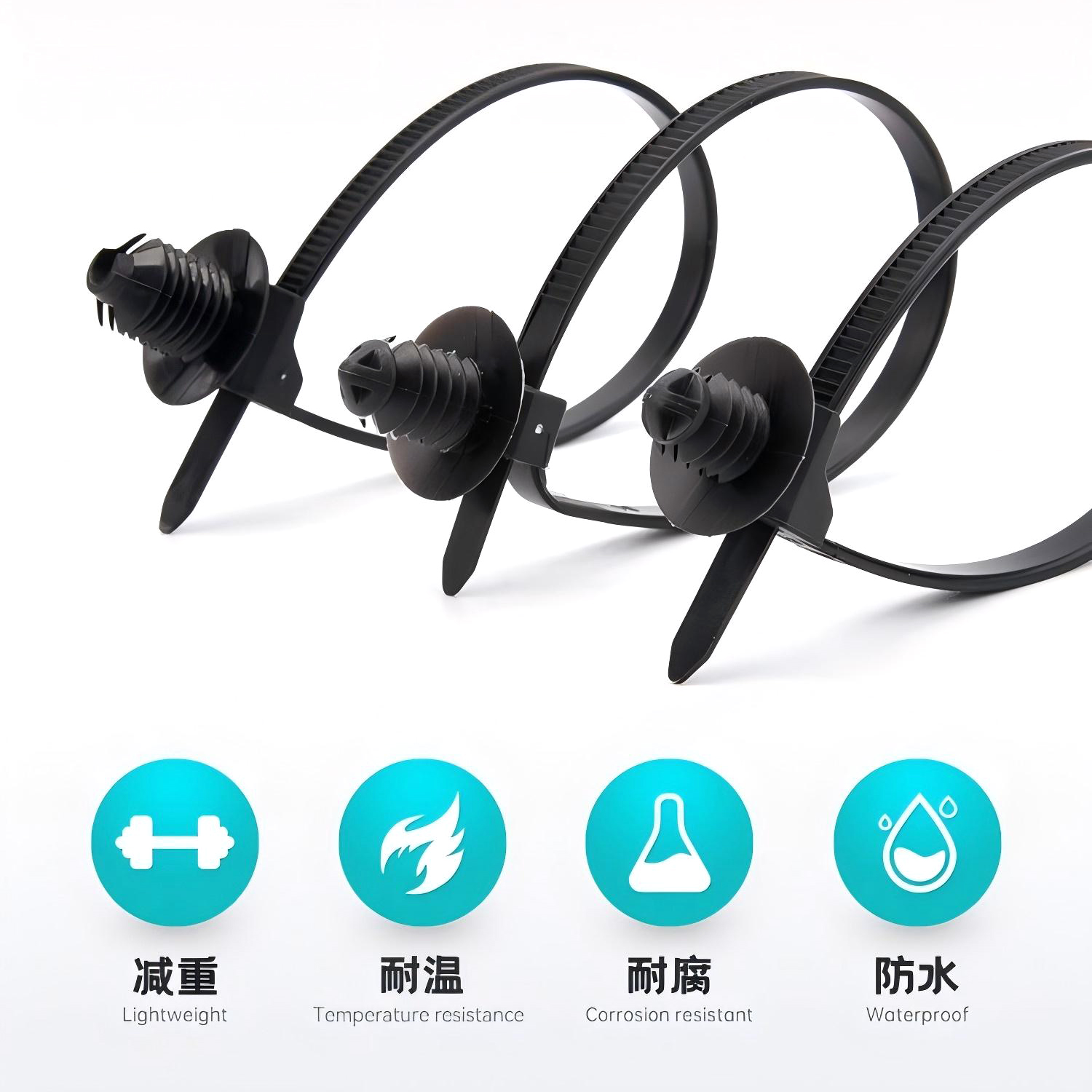

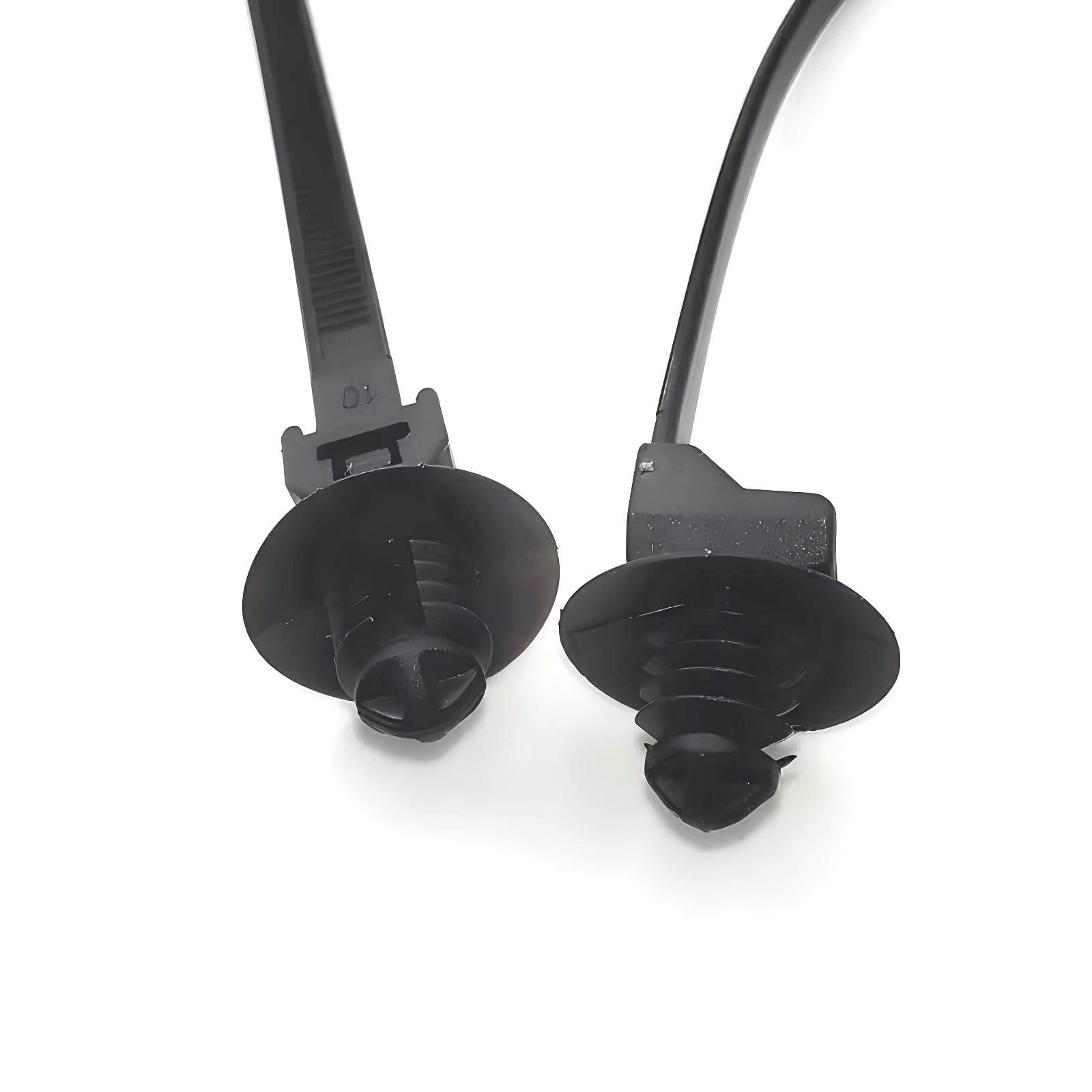

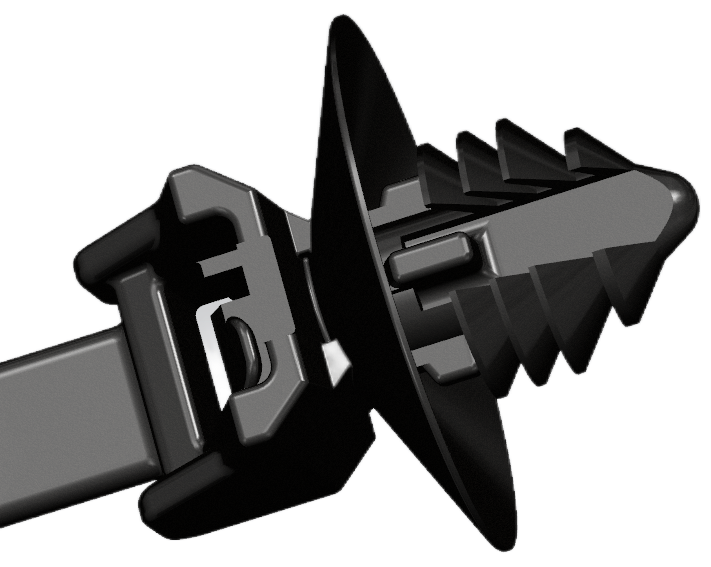

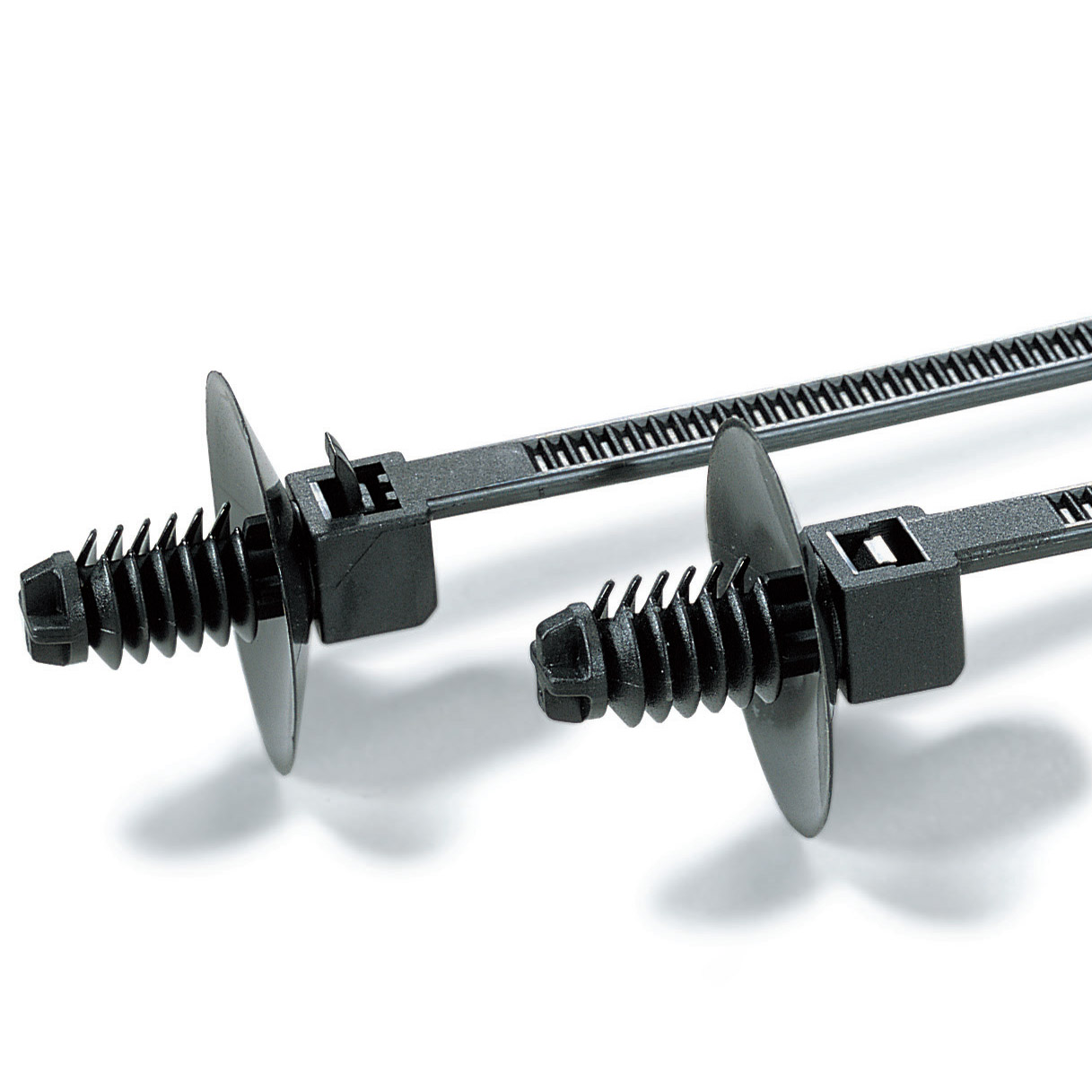

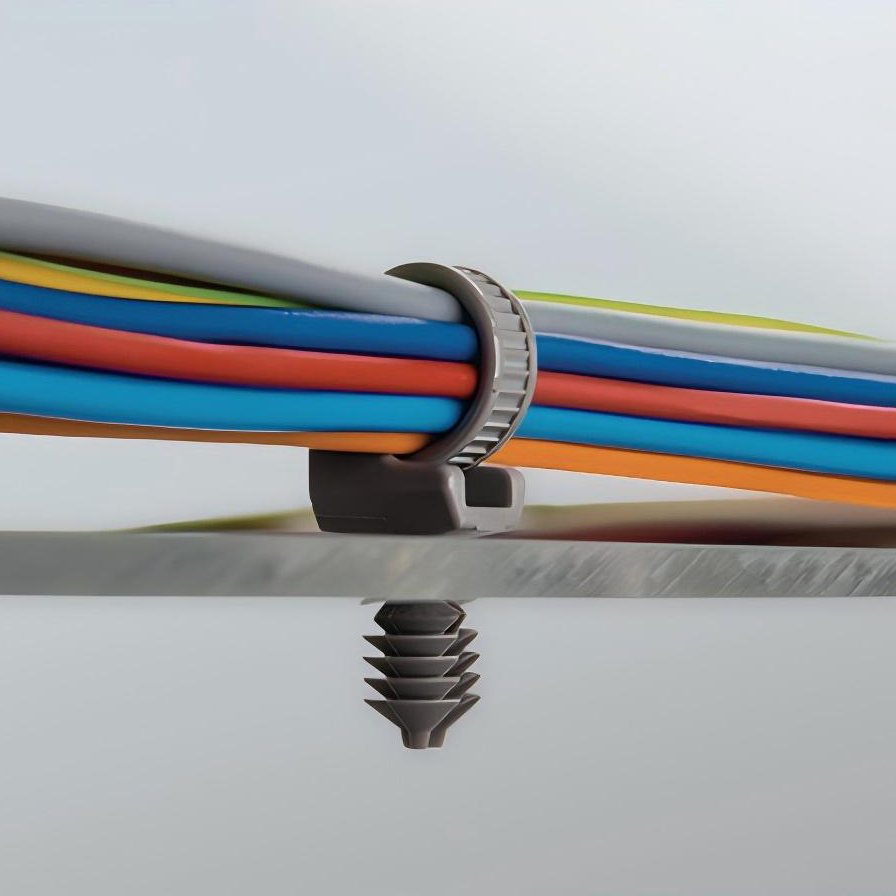

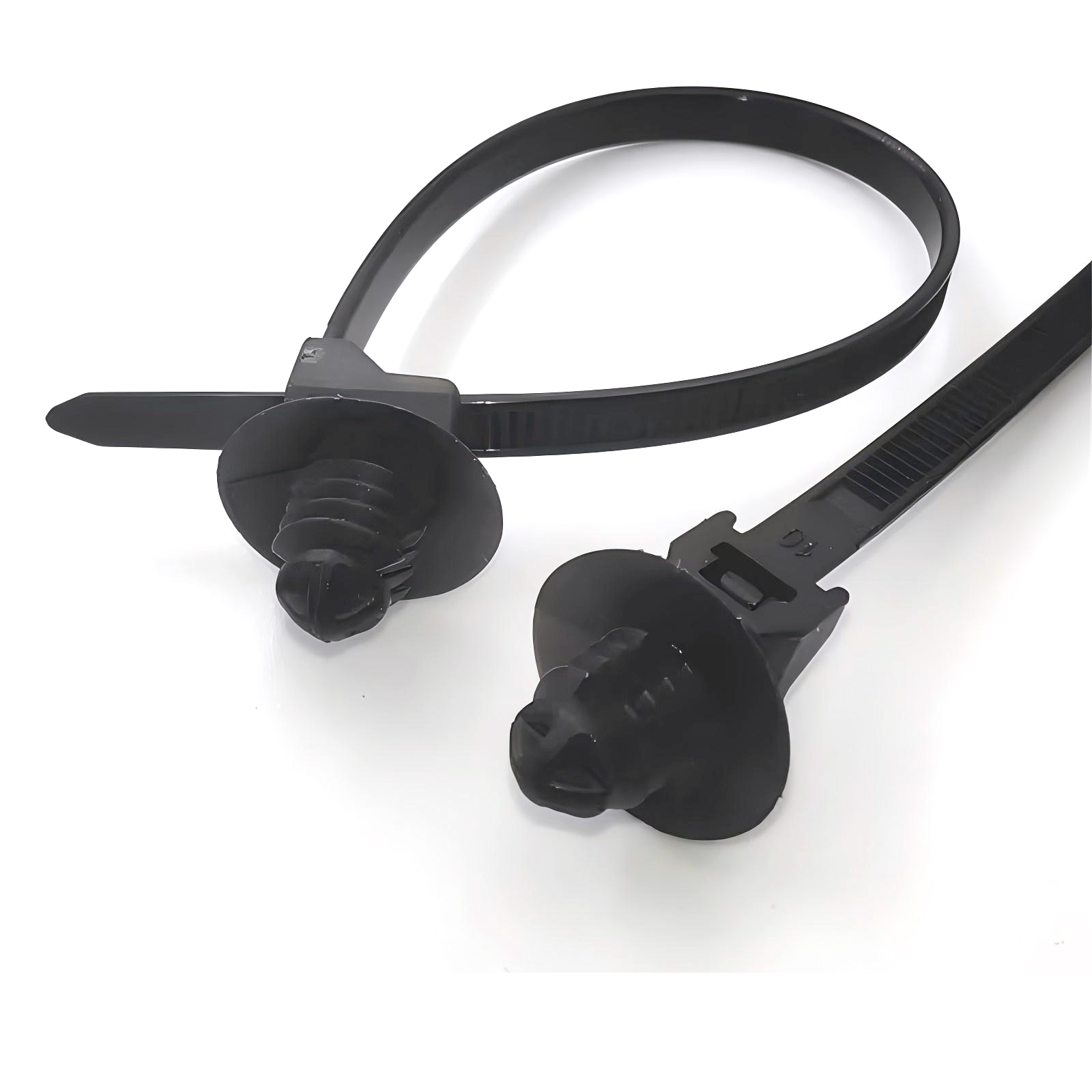

FT(材料PA66HS)杉树头+圆盘型的一体式固定扎带参数表 |
||||||||||
品名 |

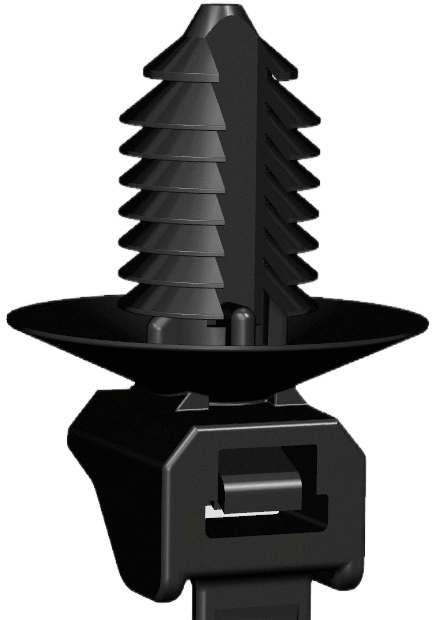

图片 |

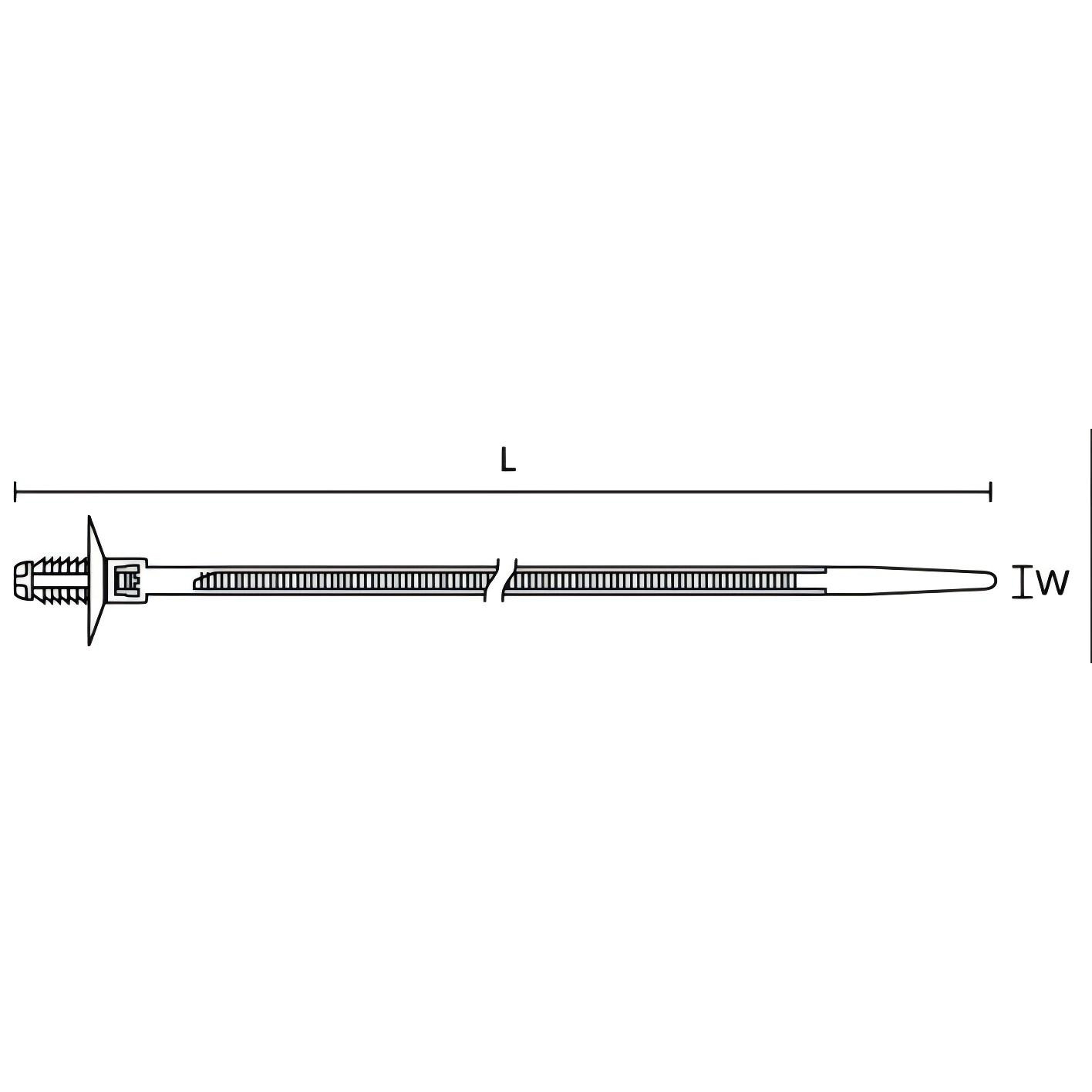

宽度W |
长度L |
厚度H |
MAX捆绑直径 |
min捆绑直径 |
通用板厚 |
安装孔径 |
拉力N | 产品编码 |
| FT-T30-L150PA66HS |  杉树头+圆盘型 |
3.5 | 150 | 1.2 | 35 | 1.5 | 0.6-5.5 | 6.3-6.8 | 135 | 13957-23001-001 |
| FT-T30-L180PA66HS | 3.5 | 180 | 1.2 | 40 | 1.5 | 0.6-5.5 | 6.3-6.8 | 135 | 13957-23001-002 | |
| FT-T30-L200PA66HS | 3.5 | 200 | 1.2 | 50 | 1.5 | 0.6-5.5 | 6.3-6.8 | 135 | 13957-23001-003 | |
| FT-T40-L150PA66HS | 4.0 | 150 | 1.2 | 35 | 1.5 | 0.6-5.5 | 6.3-6.8 | 180 | 13957-23001-004 | |
| FT-T40-L200PA66HS | 4.0 | 200 | 1.2 | 50 | 1.5 | 0.6-5.5 | 6.3-6.8 | 180 | 13957-23001-005 | |
| FT-T50-L150PA66HS | 4.8 | 150 | 1.28 | 35 | 1.5 | 0.6-5.5 | 6.3-6.8 | 225 | 13957-23001-006 | |
| FT-T50-L180PA66HS | 4.8 | 180 | 1.28 | 40 | 1.5 | 0.6-5.5 | 6.3-6.8 | 225 | 13957-23001-007 | |
| FT-T50-L190PA66HS | 4.8 | 190 | 1.28 | 40 | 1.5 | 0.6-5.5 | 6.3-6.8 | 225 | 13957-23001-008 | |
| FT-T50-L200PA66HS | 4.8 | 200 | 1.28 | 50 | 1.5 | 0.6-5.5 | 6.3-6.8 | 225 | 13957-23001-009 | |
| FT-T50-L210PA66HS | 4.8 | 210 | 1.28 | 50 | 1.5 | 0.6-5.5 | 6.3-6.8 | 225 | 13957-23001-010 | |
| FT-T50-L230PA66HS | 4.8 | 230 | 1.28 | 50 | 1.5 | 0.6-5.5 | 6.3-6.8 | 225 | 13957-23001-011 | |
| FT-T80-L160PA66HS | 5.5 | 160 | 1.3 | 35 | 1.5 | 0.6-5.5 | 6.3-6.8 | 355 | 13957-23001-012 | |
| FT-T80-L180PA66HS | 5.5 | 180 | 1.3 | 40 | 1.5 | 0.6-5.5 | 6.3-6.8 | 355 | 13957-23001-013 | |
| FT-T80-L190PA66HS | 5.5 | 190 | 1.3 | 40 | 1.5 | 0.6-5.5 | 6.3-6.8 | 355 | 13957-23001-014 | |
| FT-T80-L200PA66HS | 5.5 | 200 | 1.3 | 50 | 1.5 | 0.6-5.5 | 6.3-6.8 | 355 | 13957-23001-015 | |
| FT-T80-L210PA66HS | 5.5 | 210 | 1.3 | 50 | 2.5 | 0.6-5.5 | 6.3-6.8 | 355 | 13957-23001-016 | |
| FT-T80-L230PA66HS | 5.5 | 230 | 1.3 | 55 | 3.5 | 0.6-5.5 | 6.3-6.8 | 355 | 13957-23001-017 | |
| FT-T30-L150PA66HS |  杉树头+圆盘型 | 3.5 | 150 | 1.2 | 35 | 1.5 | 0.8-5.0 | 7.4-8.0 | 135 | 13957-23002-001 |
| FT-T30-L180PA66HS | 3.5 | 180 | 1.2 | 40 | 1.5 | 0.8-5.0 | 7.4-8.0 | 135 | 13957-23002-002 | |
| FT-T30-L200PA66HS | 3.5 | 200 | 1.2 | 50 | 1.5 | 0.8-5.0 | 7.4-8.0 | 135 | 13957-23002-003 | |
| FT-T40-L150PA66HS | 4.0 | 150 | 1.2 | 35 | 1.5 | 0.8-5.0 | 7.4-8.0 | 180 | 13957-23002-004 | |
| FT-T40-L200PA66HS | 4.0 | 200 | 1.2 | 50 | 1.5 | 0.8-5.0 | 7.4-8.0 | 180 | 13957-23002-005 | |
| FT-T50-L150PA66HS | 4.8 | 150 | 1.28 | 35 | 1.5 | 0.8-5.0 | 7.4-8.0 | 225 | 13957-23002-006 | |
| FT-T50-L180PA66HS | 4.8 | 180 | 1.28 | 40 | 1.5 | 0.8-5.0 | 7.4-8.0 | 225 | 13957-23002-007 | |
| FT-T50-L190PA66HS | 4.8 | 190 | 1.28 | 40 | 1.5 | 0.8-5.0 | 7.4-8.0 | 225 | 13957-23002-008 | |
| FT-T50-L200PA66HS | 4.8 | 200 | 1.28 | 50 | 1.5 | 0.8-5.0 | 7.4-8.0 | 225 | 13957-23002-009 | |
| FT-T50-L210PA66HS | 4.8 | 210 | 1.28 | 50 | 1.5 | 0.8-5.0 | 7.4-8.0 | 225 | 13957-23002-010 | |
| FT-T50-L230PA66HS | 4.8 | 230 | 1.28 | 50 | 1.5 | 0.8-5.0 | 7.4-8.0 | 225 | 13957-23002-011 | |
| FT-T80-L160PA66HS | 5.5 | 160 | 1.3 | 35 | 1.5 | 0.8-5.0 | 7.4-8.0 | 355 | 13957-23002-012 | |
| FT-T80-L180PA66HS | 5.5 | 180 | 1.3 | 40 | 1.5 | 0.8-5.0 | 7.4-8.0 | 355 | 13957-23002-013 | |
| FT-T80-L190PA66HS | 5.5 | 190 | 1.3 | 40 | 1.5 | 0.8-5.0 | 7.4-8.0 | 355 | 13957-23002-014 | |
| FT-T80-L200PA66HS | 5.5 | 200 | 1.3 | 50 | 1.5 | 0.8-5.0 | 7.4-8.0 | 355 | 13957-23002-015 | |
| FT-T80-L210PA66HS | 5.5 | 210 | 1.3 | 50 | 2.5 | 0.8-5.0 | 7.4-8.0 | 355 | 13957-23002-016 | |
| FT-T80-L230PA66HS | 5.5 | 230 | 1.3 | 55 | 3.5 | 0.8-5.0 | 7.4-8.0 | 355 | 13957-23002-017 | |
| FT-T30-L150PA66HS |  杉树头+圆盘型 | 3.5 | 150 | 1.2 | 35 | 1.5 | 0.8-1.5 | 6.3-6.8 | 135 | 13957-23003-001 |
| FT-T30-L180PA66HS | 3.5 | 180 | 1.2 | 40 | 1.5 | 0.8-1.5 | 6.3-6.8 | 135 | 13957-23003-002 | |
| FT-T30-L200PA66HS | 3.5 | 200 | 1.2 | 50 | 1.5 | 0.8-1.5 | 6.3-6.8 | 135 | 13957-23003-003 | |
| FT-T40-L150PA66HS | 4.0 | 150 | 1.2 | 35 | 1.5 | 0.8-1.5 | 6.3-6.8 | 180 | 13957-23003-004 | |
| FT-T40-L200PA66HS | 4.0 | 200 | 1.2 | 50 | 1.5 | 0.8-1.5 | 6.3-6.8 | 180 | 13957-23003-005 | |
| FT-T50-L150PA66HS | 4.8 | 150 | 1.28 | 35 | 1.5 | 0.8-1.5 | 6.3-6.8 | 225 | 13957-23003-006 | |
| FT-T50-L180PA66HS | 4.8 | 180 | 1.28 | 40 | 1.5 | 0.8-1.5 | 6.3-6.8 | 225 | 13957-23003-007 | |
| FT-T50-L190PA66HS | 4.8 | 190 | 1.28 | 40 | 1.5 | 0.8-1.5 | 6.3-6.8 | 225 | 13957-23003-008 | |
| FT-T50-L200PA66HS | 4.8 | 200 | 1.28 | 50 | 1.5 | 0.8-1.5 | 6.3-6.8 | 225 | 13957-23003-009 | |
| FT-T50-L210PA66HS | 4.8 | 210 | 1.28 | 50 | 1.5 | 0.8-1.5 | 6.3-6.8 | 225 | 13957-23003-010 | |
| FT-T50-L230PA66HS | 4.8 | 230 | 1.28 | 50 | 1.5 | 0.8-1.5 | 6.3-6.8 | 225 | 13957-23003-011 | |
| FT-T80-L160PA66HS | 5.5 | 160 | 1.3 | 35 | 1.5 | 0.8-1.5 | 6.3-6.8 | 355 | 13957-23003-012 | |
| FT-T80-L180PA66HS | 5.5 | 180 | 1.3 | 40 | 1.5 | 0.8-1.5 | 6.3-6.8 | 355 | 13957-23003-013 | |
| FT-T80-L190PA66HS | 5.5 | 190 | 1.3 | 40 | 1.5 | 0.8-1.5 | 6.3-6.8 | 355 | 13957-23003-014 | |
| FT-T80-L200PA66HS | 5.5 | 200 | 1.3 | 50 | 1.5 | 0.8-1.5 | 6.3-6.8 | 355 | 13957-23003-015 | |
| FT-T80-L210PA66HS | 5.5 | 210 | 1.3 | 50 | 2.5 | 0.8-1.5 | 6.3-6.8 | 355 | 13957-23003-016 | |
| FT-T80-L230PA66HS | 5.5 | 230 | 1.3 | 55 | 3.5 | 0.8-1.5 | 6.3-6.8 | 355 | 13957-23003-017 | |
