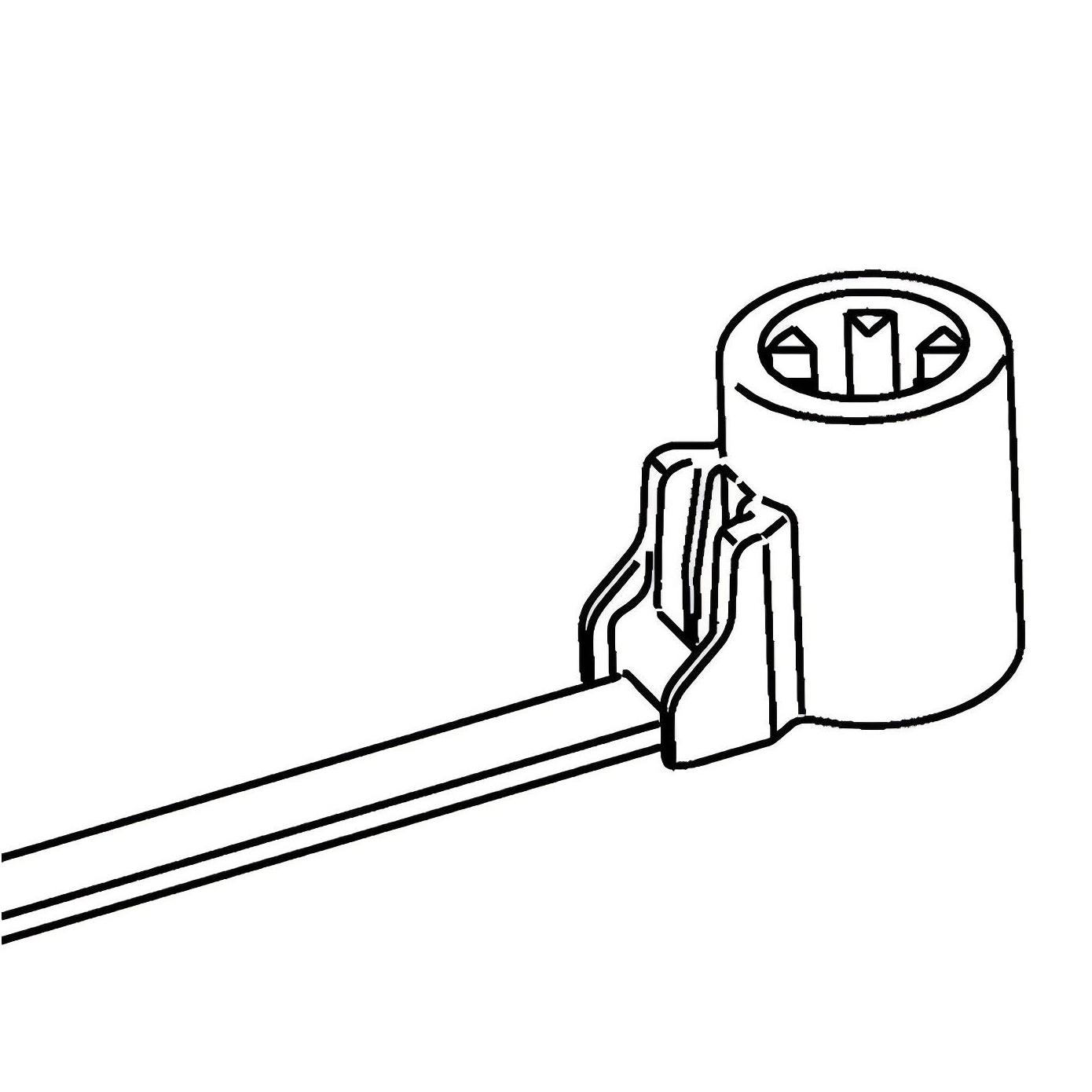

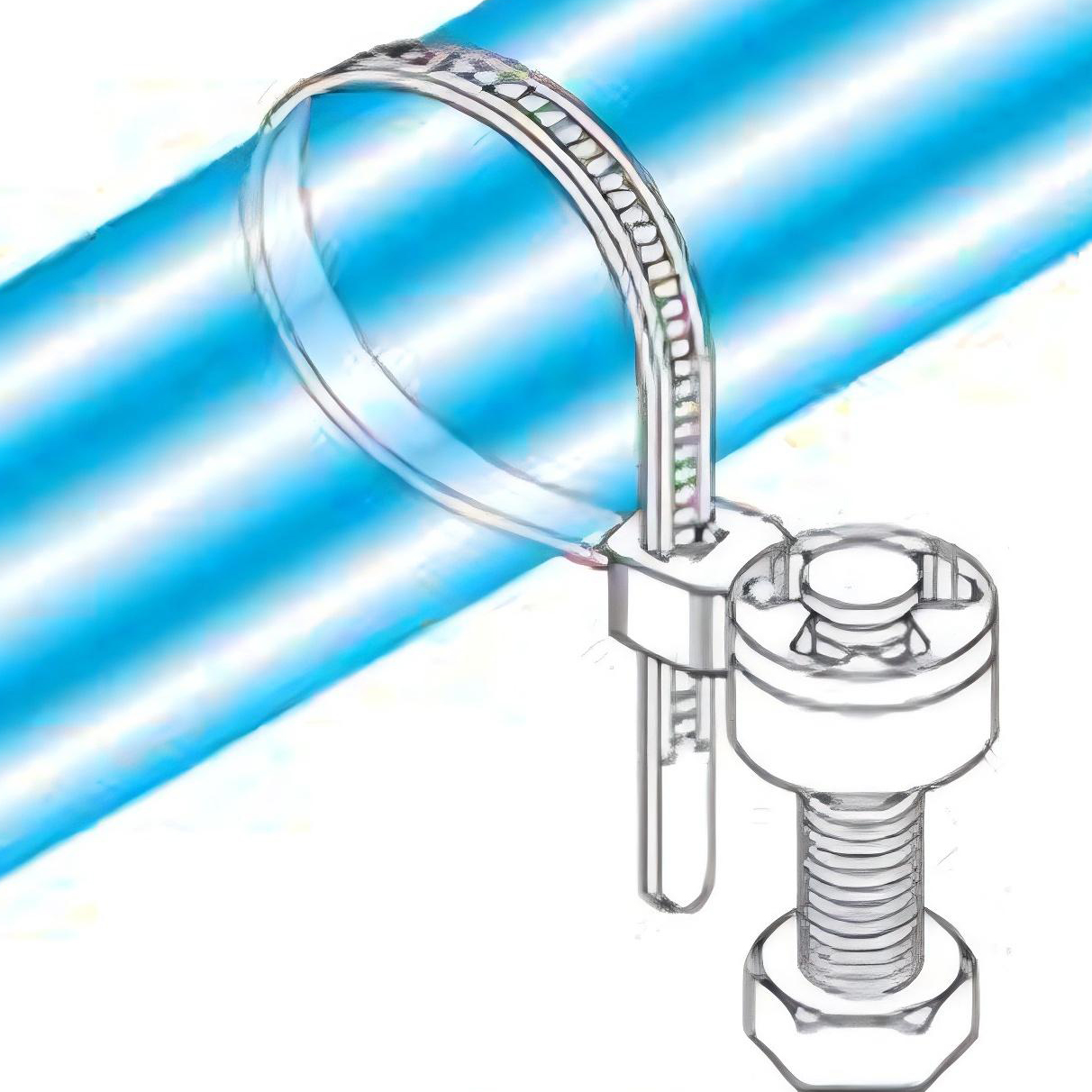

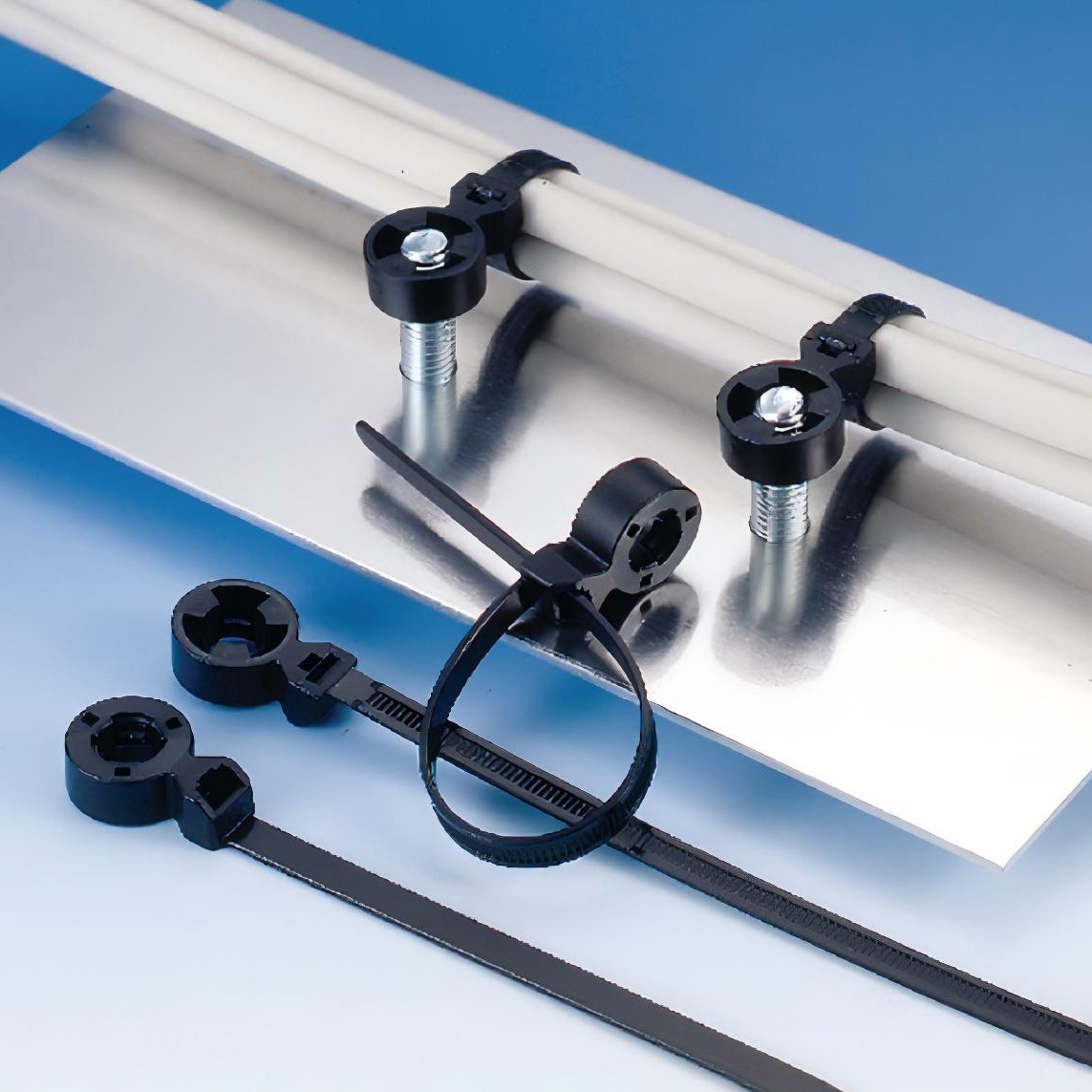

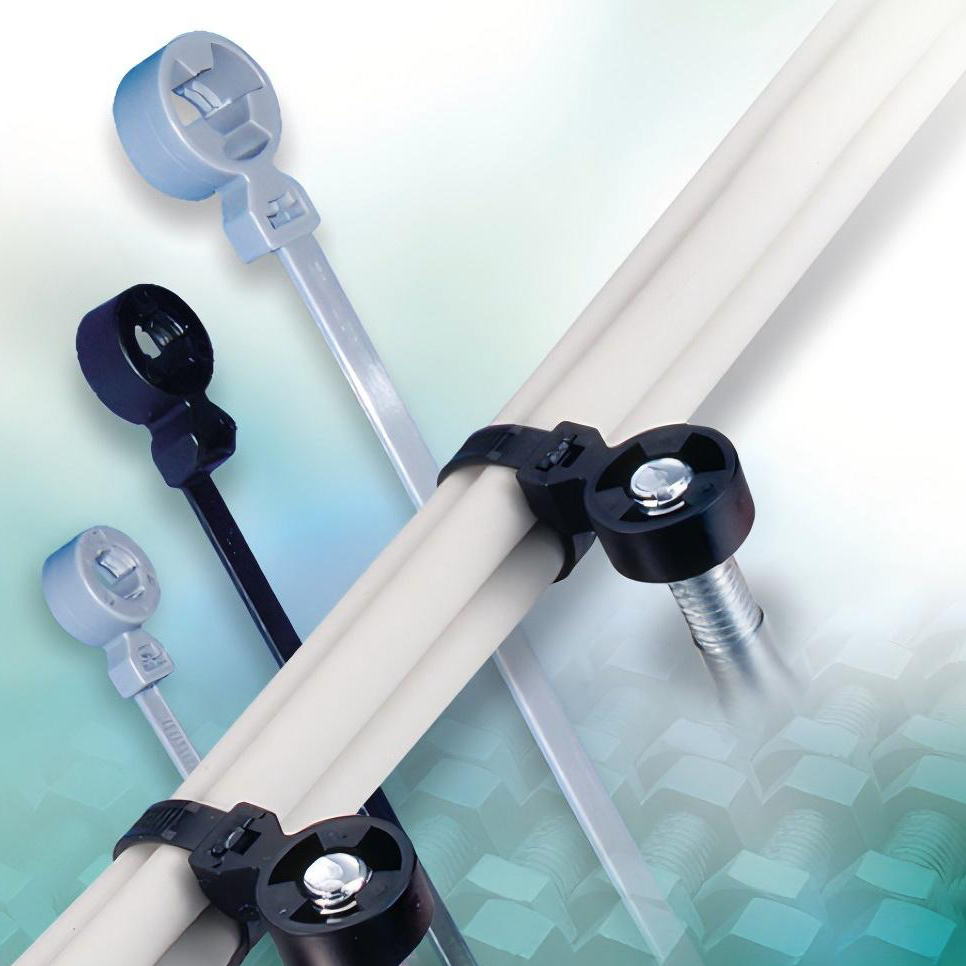

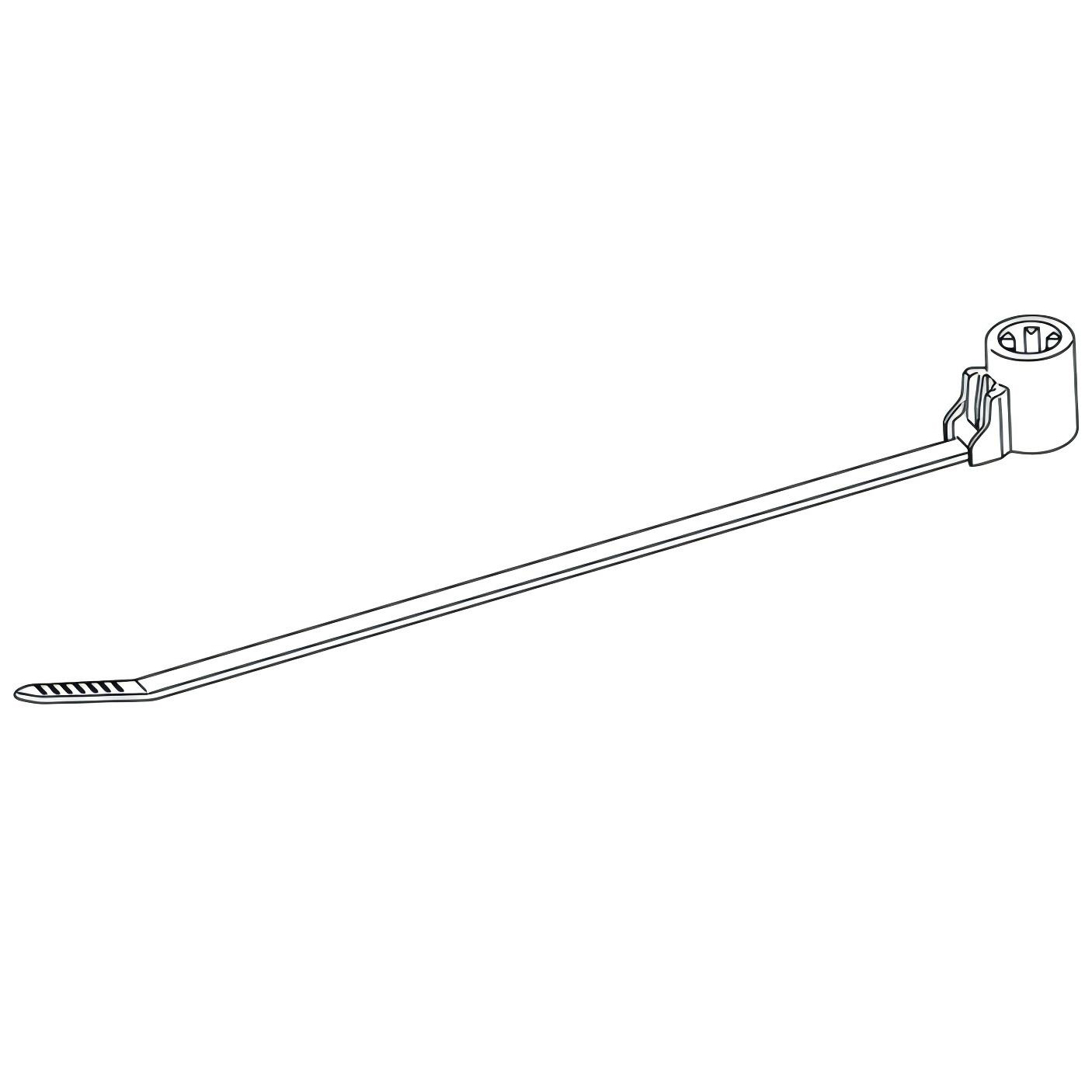

SB(材料PA66HS)一体式焊接螺栓固定扎带参数表 |
|||||||||
品名 |
图片 |
宽度W |
长度L |
厚度H |
MAX捆绑直径 |
min捆绑直径 |
螺栓直径mm |
拉力N | 产品编码 |
| SB-T30-L160PA66HS |  |
3.5 | 160 | 1.2 | 35 | 1.5 | 5/6/8 | 135 | 13955-22003-M5-001 |
| SB-T30-L190PA66HS | 3.5 | 190 | 1.2 | 50 | 1.5 | 5/6/8 | 135 | 13955-22003-M5-002 | |
| SB-T30-L210PA66HS | 3.5 | 210 | 1.2 | 50 | 1.5 | 5/6/8 | 135 | 13955-22003-M5-003 | |
| SB-T40-L160PA66HS | 4.0 | 160 | 1.2 | 35 | 1.5 | 5/6/8 | 180 | 13955-22003-M5-004 | |
| SB-T40-L210PA66HS | 4.0 | 210 | 1.2 | 50 | 1.5 | 5/6/8 | 180 | 13955-22003-M5-005 | |
| SB-T50-L150PA66HS | 4.8 | 150 | 1.28 | 35 | 1.5 | 5/6/8 | 225 | 13955-22003-M5-006 | |
| SB-T50-L190PA66HS | 4.8 | 190 | 1.28 | 50 | 1.5 | 5/6/8 | 225 | 13955-22003-M5-007 | |
| SB-T50-L210PA66HS | 4.8 | 210 | 1.28 | 65 | 1.5 | 5/6/8 | 225 | 13955-22003-M5-008 | |
| SB-T80-L160PA66HS | 5.5 | 160 | 1.3 | 35 | 1.5 | 5/6/8 | 355 | 13955-22003-M5-009 | |
| SB-T80-L190PA66HS | 5.5 | 190 | 1.3 | 50 | 1.5 | 5/6/8 | 355 | 13955-22003-M5-010 | |
| SB-T80-L210PA66HS | 5.5 | 210 | 1.3 | 65 | 1.5 | 5/6/8 | 355 | 13955-22003-M5-011 | |
| SB-T30-L160PA66HS |  | 3.5 | 160 | 1.2 | 35 | 1.5 | 6/8 | 135 | 13955-22004-M6-001 |
| SB-T30-L190PA66HS | 3.5 | 190 | 1.2 | 50 | 1.5 | 6/8 | 135 | 13955-22004-M6-002 | |
| SB-T30-L210PA66HS | 3.5 | 210 | 1.2 | 50 | 1.5 | 6/8 | 135 | 13955-22004-M6-003 | |
| SB-T40-L160PA66HS | 4.0 | 160 | 1.2 | 35 | 1.5 | 6/8 | 180 | 13955-22004-M6-004 | |
| SB-T40-L210PA66HS | 4.0 | 210 | 1.2 | 50 | 1.5 | 6/8 | 180 | 13955-22004-M6-005 | |
| SB-T50-L150PA66HS | 4.8 | 150 | 1.28 | 35 | 1.5 | 6/8 | 225 | 13955-22004-M6-006 | |
| SB-T50-L190PA66HS | 4.8 | 190 | 1.28 | 50 | 1.5 | 6/8 | 225 | 13955-22004-M6-007 | |
| SB-T50-L210PA66HS | 4.8 | 210 | 1.28 | 65 | 1.5 | 6/8 | 225 | 13955-22004-M6-008 | |
| SB-T80-L160PA66HS | 5.5 | 160 | 1.3 | 35 | 1.5 | 6/8 | 355 | 13955-22004-M6-009 | |
| SB-T80-L190PA66HS | 5.5 | 190 | 1.3 | 50 | 1.5 | 6/8 | 355 | 13955-22004-M6-010 | |
| SB-T80-L210PA66HS | 5.5 | 210 | 1.3 | 65 | 1.5 | 6/8 | 355 | 13955-22004-M6-011 | |
| SB-T30-L160PA66HS |  | 3.5 | 160 | 1.2 | 35 | 1.5 | 6/8 | 135 | 13955-22005-M6-001 |
| SB-T30-L190PA66HS | 3.5 | 190 | 1.2 | 50 | 1.5 | 6/8 | 135 | 13955-22005-M6-002 | |
| SB-T30-L210PA66HS | 3.5 | 210 | 1.2 | 50 | 1.5 | 6/8 | 135 | 13955-22005-M6-003 | |
| SB-T40-L160PA66HS | 4.0 | 160 | 1.2 | 35 | 1.5 | 6/8 | 180 | 13955-22005-M6-004 | |
| SB-T40-L210PA66HS | 4.0 | 210 | 1.2 | 50 | 1.5 | 6/8 | 180 | 13955-22005-M6-005 | |
| SB-T50-L150PA66HS | 4.8 | 150 | 1.28 | 35 | 1.5 | 6/8 | 225 | 13955-22005-M6-006 | |
| SB-T50-L190PA66HS | 4.8 | 190 | 1.28 | 50 | 1.5 | 6/8 | 225 | 13955-22005-M6-007 | |
| SB-T50-L210PA66HS | 4.8 | 210 | 1.28 | 65 | 1.5 | 6/8 | 225 | 13955-22005-M6-008 | |
| SB-T80-L160PA66HS | 5.5 | 160 | 1.3 | 35 | 1.5 | 6/8 | 355 | 13955-22005-M6-009 | |
| SB-T80-L190PA66HS | 5.5 | 190 | 1.3 | 50 | 1.5 | 6/8 | 355 | 13955-22005-M6-010 | |
| SB-T80-L210PA66HS | 5.5 | 210 | 1.3 | 65 | 1.5 | 6/8 | 355 | 13955-22005-M6-011 | |
