OSWSP5E-2 (材料PA66HS)可横向调整的一体式焊接螺栓固定扎带参数表 |
|||||||||
品名 |
图片 |

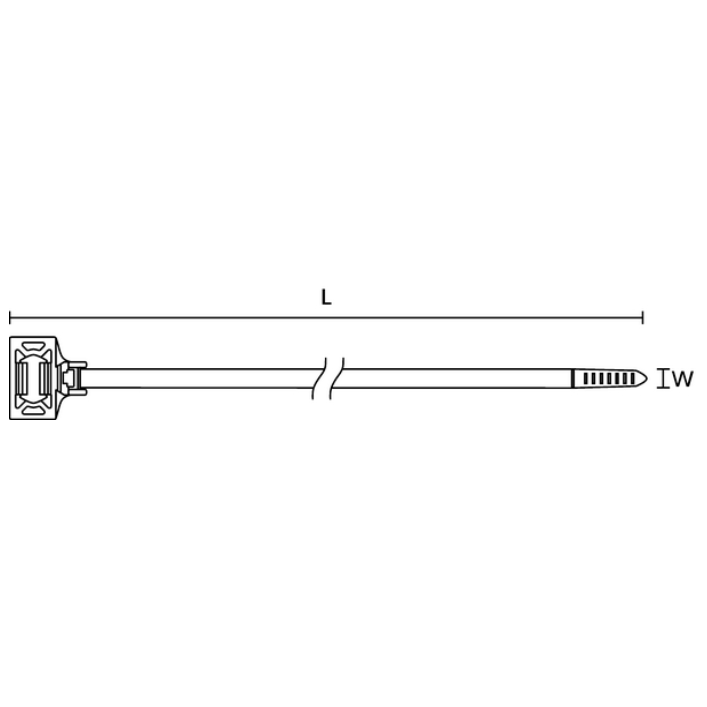

宽度W |
长度L |
厚度H | MAX捆绑直径 |
min捆绑直径 |
螺栓直径mm |
拉力N |
产品编码 |
| T30SOSWSP5E-2 |
 |
3.5 | 160 | 1.2 | 35 |
1.5 |
5/6 |
135 |
13955-22001-M5-001 |
| T30SOSWSP5E-2 | 3.5 | 190 | 1.2 | 50 | 1.5 | 5/6 | 135 | 13955-22001-M5-002 | |
| T30SOSWSP5E-2 | 3.5 | 210 | 1.2 | 50 | 1.5 | 5/6 | 135 | 13955-22001-M5-003 | |
| T40SOSWSP5E-2 | 4.0 | 160 | 1.2 | 35 | 1.5 | 5/6 | 180 | 13955-22001-M5-004 | |
| T40SOSWSP5E-2 | 4.0 | 210 | 1.2 | 50 | 1.5 | 5/6 | 180 | 13955-22001-M5-005 | |
| T50SOSWSP5E-2 | 4.8 | 150 | 1.28 | 35 | 1.5 | 5/6 | 225 | 13955-22001-M5-006 | |
| T50SOSWSP5E-2 | 4.8 | 190 | 1.28 | 50 | 1.5 | 5/6 | 225 | 13955-22001-M5-007 | |
| T50SOSWSP5E-2 | 4.8 | 210 | 1.28 | 65 | 1.5 | 5/6 | 225 | 13955-22001-M5-008 | |
| T80SOSWSP5E-2 | 5.5 | 160 | 1.3 | 35 | 1.5 | 5/6 | 355 | 13955-22001-M5-009 | |
| T80SOSWSP5E-2 | 5.5 | 190 | 1.3 | 50 | 1.5 | 5/6 | 355 | 13955-22001-M5-010 | |
| T80SOSWSP5E-2 | 5.5 | 210 | 1.3 | 65 | 1.5 | 5/6 | 355 | 13955-22001-M5-011 | |
