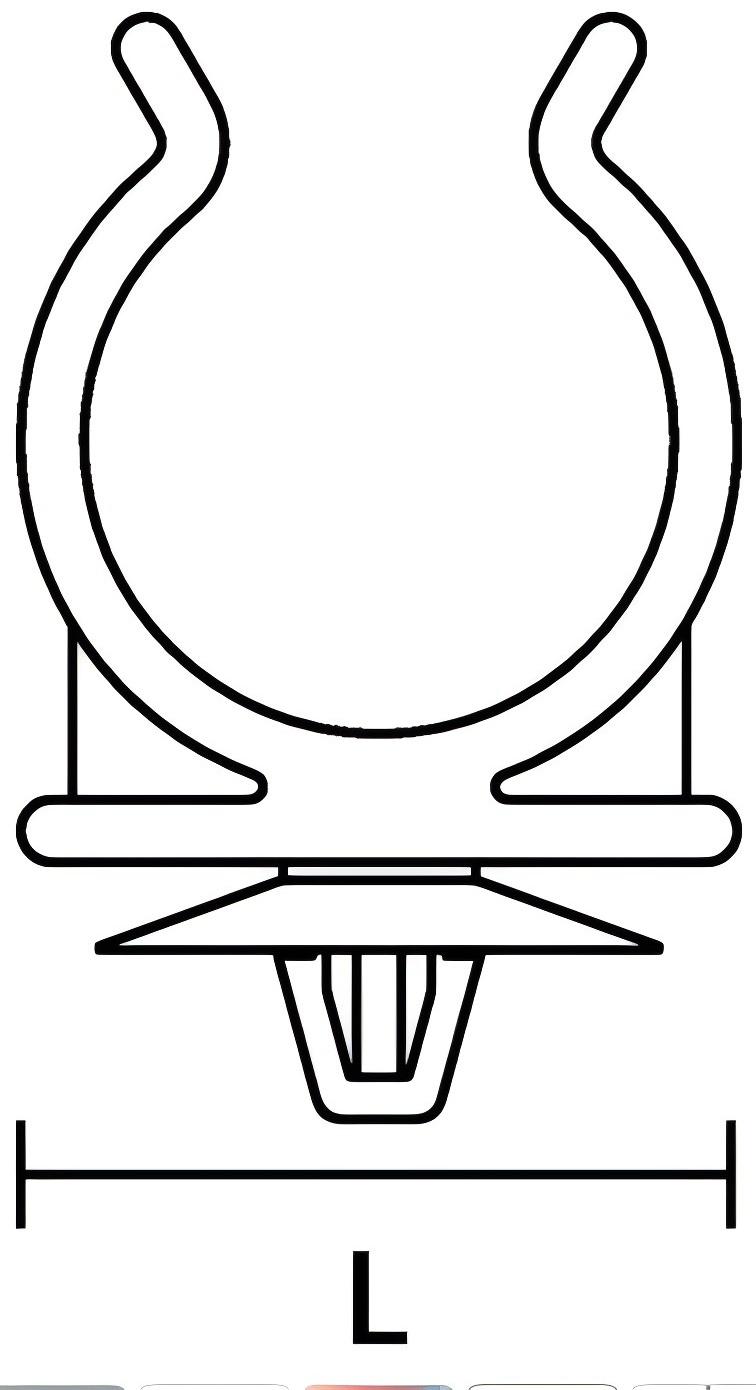

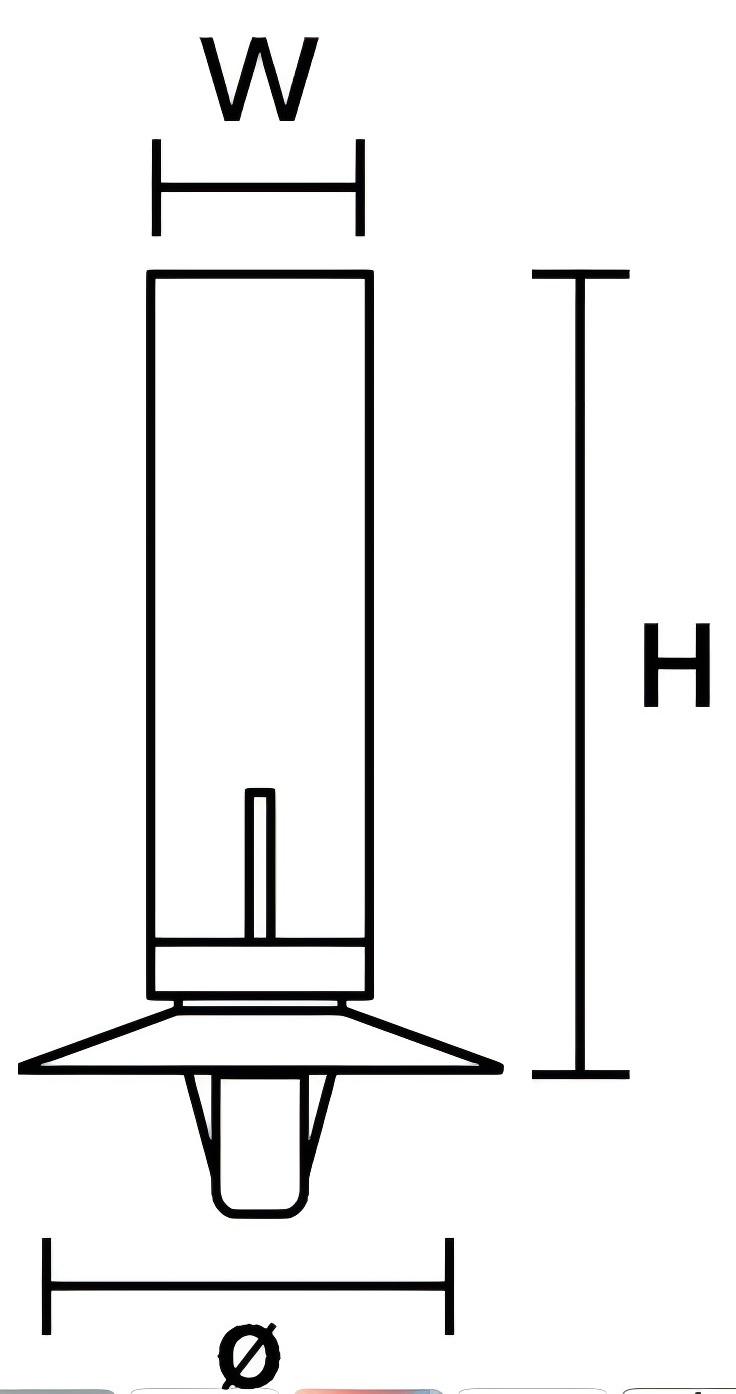

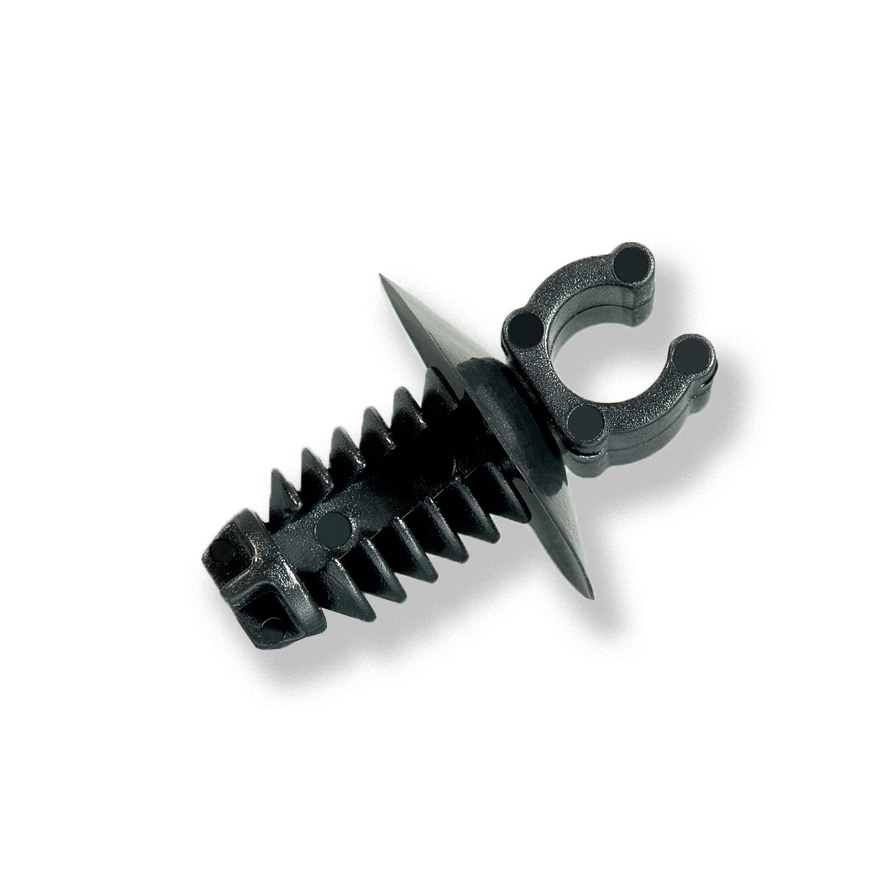

PC (材料PA66HS)适用于管道和软管的固定件参数表 | ||||||||
品名 |
图片 |
头部插入力N＜ |
头部拔出力N≥ |
通用板厚 |
安装孔径 |
管径d |
头部长度h |
产品编码 |
| PC-T6.5 W08_45PA66HS | / | 50 | 100 | 0.8-4.5 | 6.3-6.8 | 4.5 | 12 | 13953-22009-001 |
| PC-T6.5 W08_45PA66HS | / | 50 | 100 | 0.8-4.5 | 6.3-6.8 | 7.5 | 12 | 13953-22009-002 |
| PC-T6.5 W08_45PA66HS | / | 50 | 100 | 0.8-4.5 | 6.3-6.8 | 10 | 12 | 13953-22009-003 |
| PC-T6.5 W08_45PA66HS | / | 50 | 100 | 0.8-4.5 | 6.3-6.8 | 10 | 12 | 13953-22009-004 |
| PC-T65_125 W08_45PA66HS | / | 50 | 100 | 0.8-4.5 | 6.5-12.5 | 7.5 | 10 | 13953-22010-001 |
| PC-T65_125 W08_45PA66HS | / | 50 | 100 | 0.8-4.5 | 6.5-12.5 | 10 | 10 | 13953-22010-002 |
| PC-T65_125 W08_45PA66HS | / | 50 | 100 | 0.8-4.5 | 6.5-12.5 | 13 | 10 | 13953-22010-003 |
| PC-T65_125 W08_45PA66HS | / | 50 | 100 | 0.8-4.5 | 6.5-12.5 | 15 | 10 | 13953-22010-004 |
